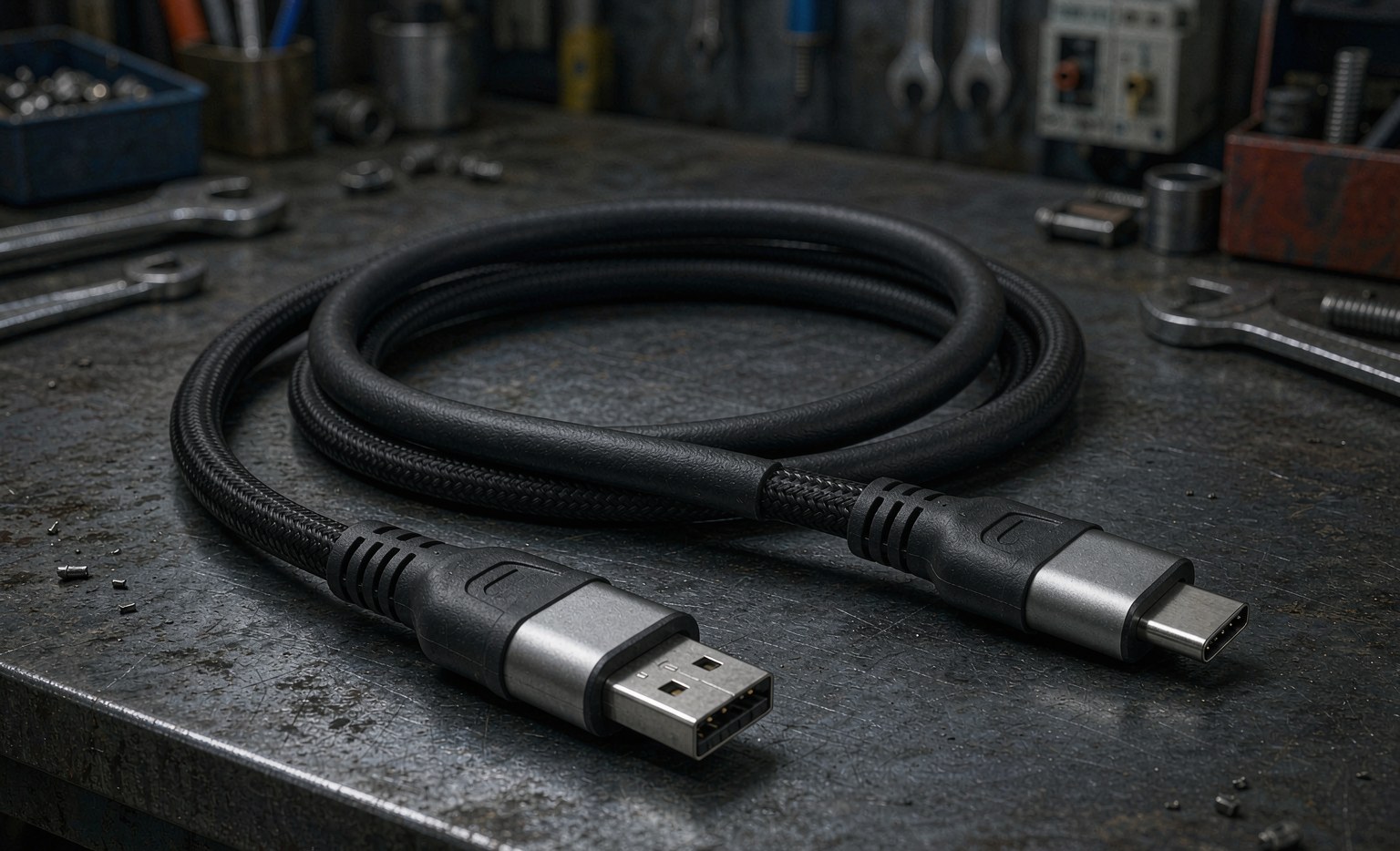

Industrial USB Cable: Construction, Shielding and Specs

An industrial USB cable is not a phone charger lead. It has to survive flex,
vibration, oil, and EMI on a factory floor while carrying data and power
reliably. The specs that matter — version, connector, shielding, gauge, and
certification — decide whether it works or flakes out after a month. This guide
covers the real numbers.

USB versions and speed

Passive copper length drops as speed rises; longer high-speed runs need
active cables or fiber extenders. The 5 m / 3 m limits are the spec maximums, not
suggestions.

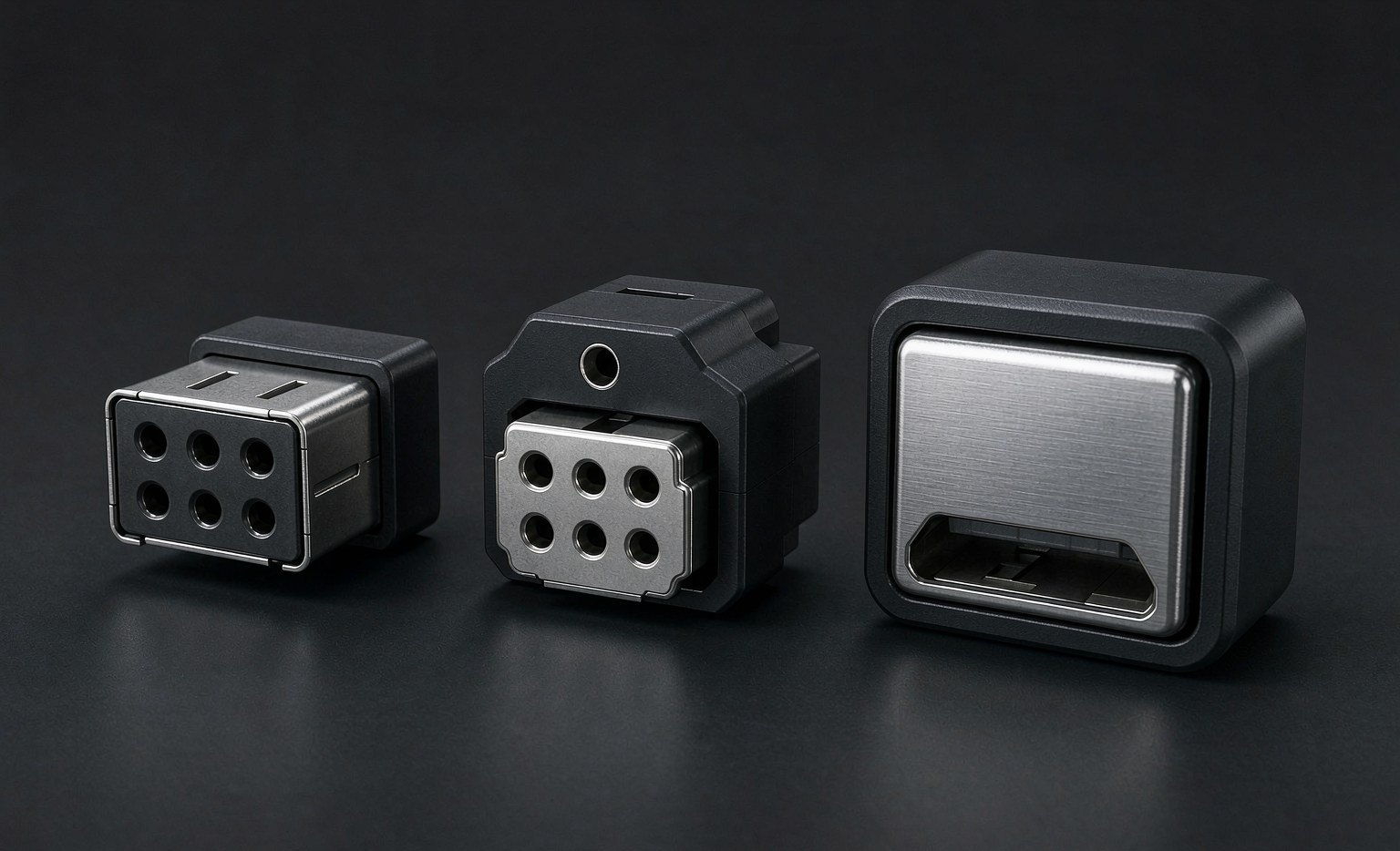

Connectors

Type-A (host side, flat), Type-B (device, square), Micro-B (legacy device), and
Type-C (reversible, current standard) are the common industrial forms. Type-C
carries the most power and signal in one reversible connector, which is why new
equipment standardizes on it; legacy machines still use A and B, so a cable
spec has to name both ends.

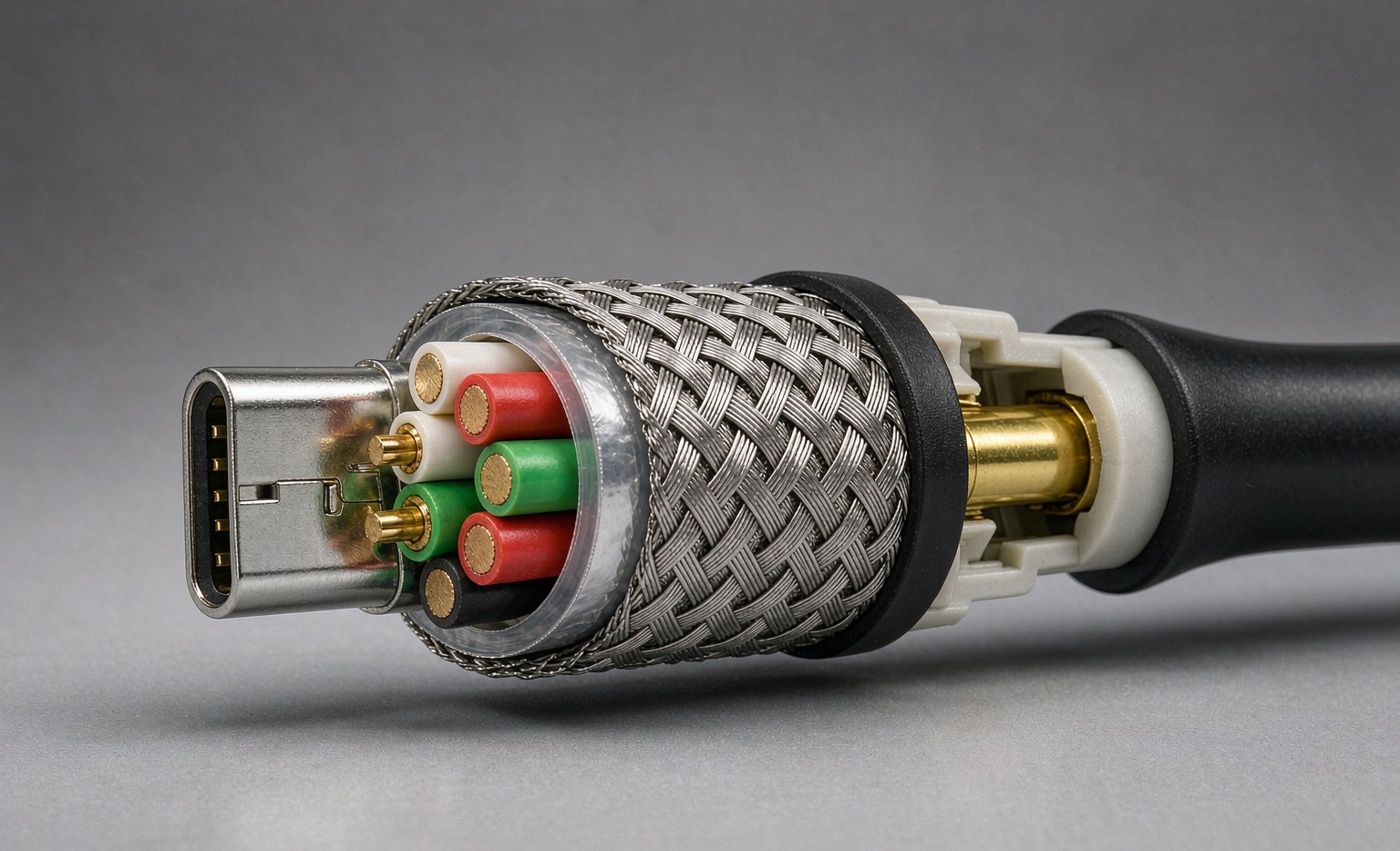

Shielding and EMC

On a shop floor, EMI from motors and welders corrupts unshielded data lines.
Industrial cables use foil plus braid shielding and often a ferrite bead at the
connector to suppress common-mode noise. A foil-and-braid combo typically beats
either alone; for noisy environments, specify double-shielded and verify the
connector shell is grounded through the shield.

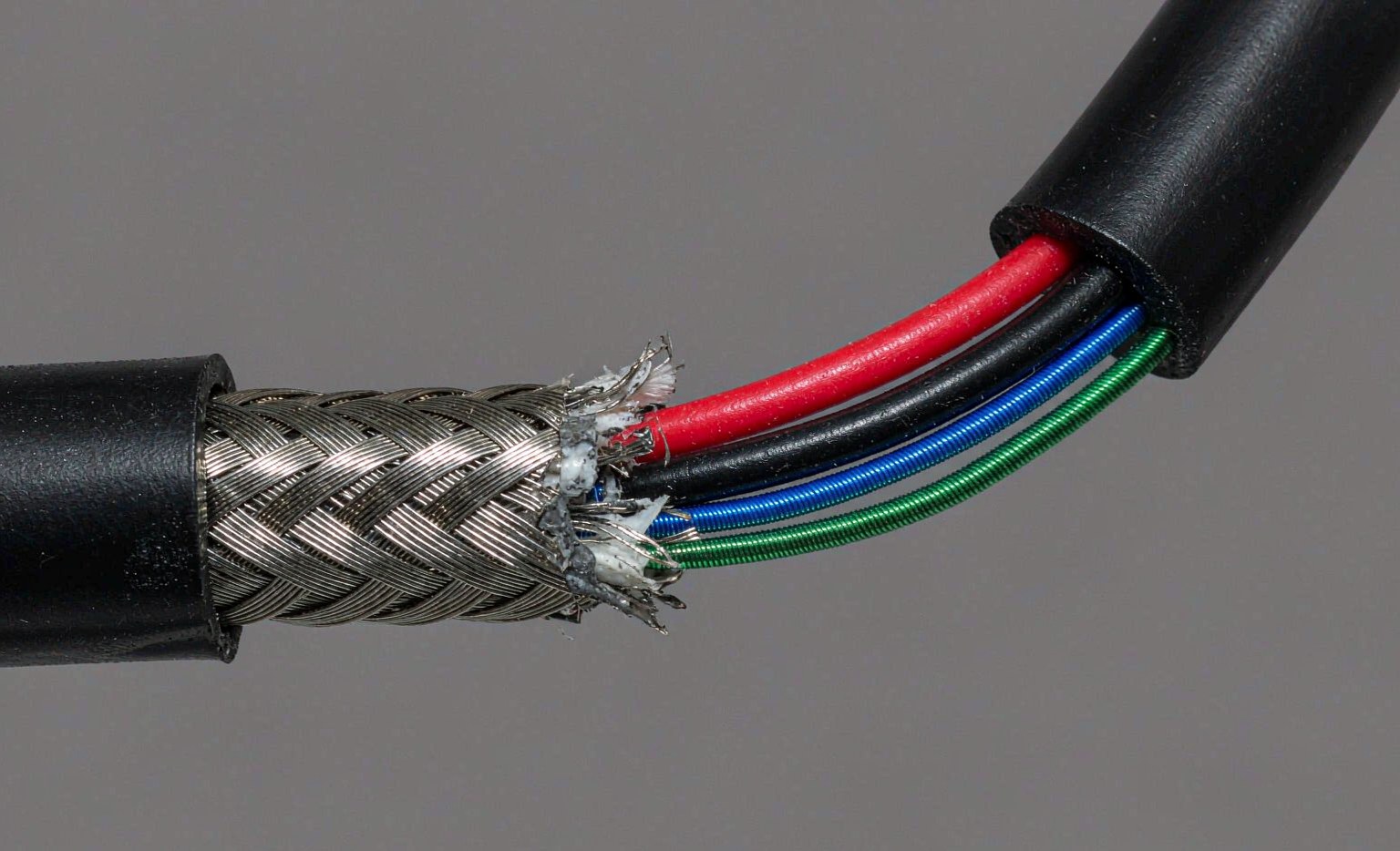

Gauge and power

Power pairs are usually 28 AWG (signal) with 24 or 20 AWG (power) so the cable
drops less voltage under load. Thin all-28 AWG cables sag voltage on longer runs
and throttle charging or reset devices. For powered industrial use, check the
power conductor gauge, not just the connector.

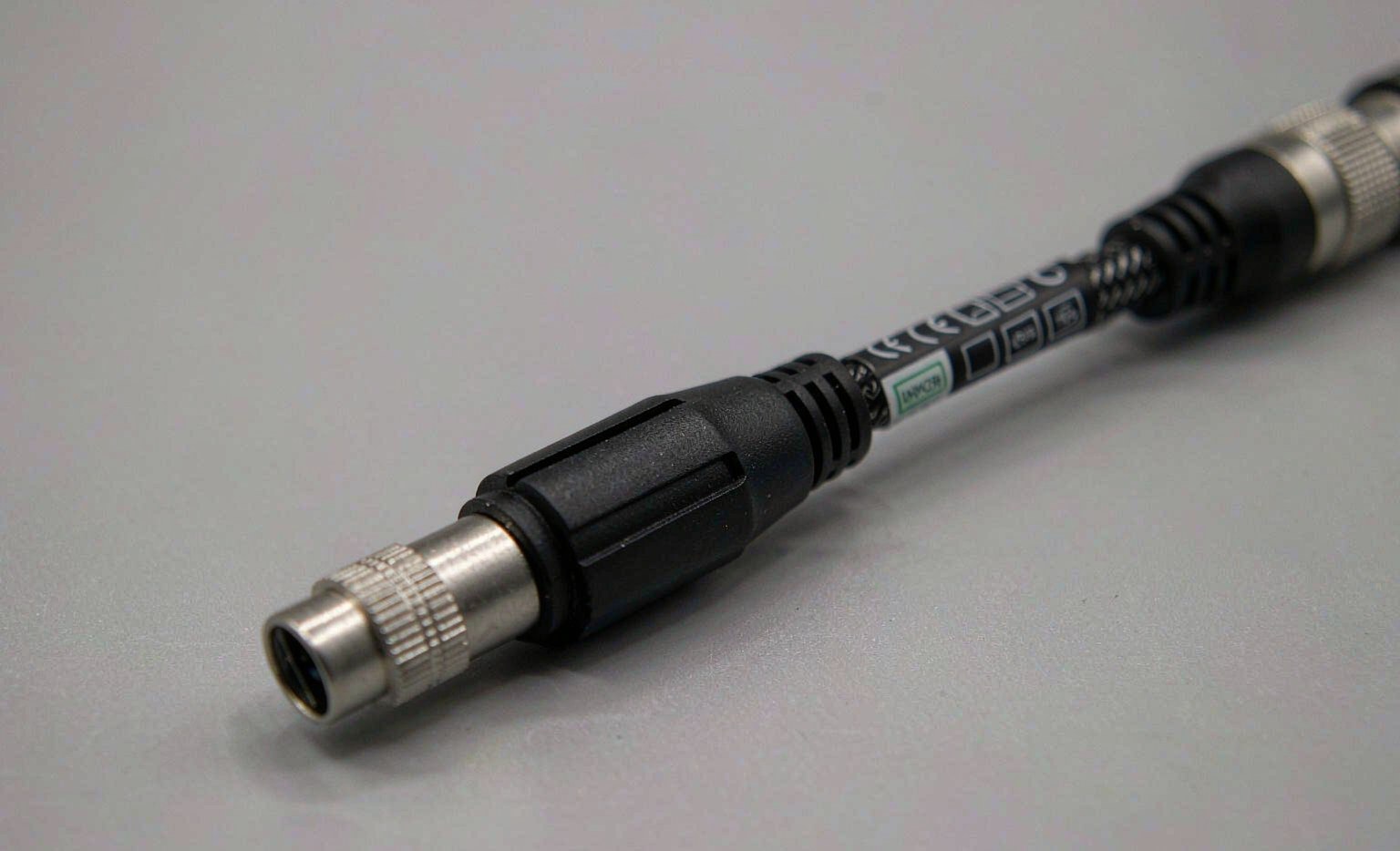

Certifications

Legitimate cables carry USB-IF certification (interoperability), CE (EU),
RoHS and REACH (substance limits), and FCC for EMI. Industrial builds add a
molded strain relief, a TPU or PVC jacket rated for the temperature range, and
sometimes an IP-rated connector boot. A cable with none of these is a consumer
lead wearing an industrial label — it will fail where it matters.

Mating cycles and durability

Connector durability is rated in mate cycles: a well-built Type-C is typically
specified for around 10,000 insertions, while Micro-B is far less robust and its small
contacts deform easily under repeated use. On a factory panel where cables are plugged
and unplugged daily, that difference decides whether the port survives a year. Molded
strain relief and a metal shell add protection where a plain lead would fray at the
connector.

Bend radius and routing

Cables have a minimum bend radius, and violating it cracks conductors or damages the
shield. In drag-chain or robotic applications the cable must be rated for continuous
flex life, often with a higher strand count to survive millions of cycles. Routing a
standard cable through a moving axis is a common cause of intermittent faults that look
like a device problem but are really a cable spec problem.

Signal integrity at speed

As data rate rises, cable quality matters more: impedance mismatches, poor shielding
and long lengths all cause the eye diagram to close and the link to drop to a lower
speed or renegotiate. For USB 3.x and above, keep runs short, use the specified
impedance and avoid sharp bends or untwisted breaks. A cable that “works” at 2.0 speeds
may fail entirely at 3.0 on the same run.

Certification checklist

For an industrial purchase, confirm USB-IF listing (interoperability), CE marking for
the EU, RoHS and REACH for restricted substances, and FCC for emissions where the cable
carries active electronics. For sealed or high-flex builds, also confirm the IP rating
and the flex-life rating in the datasheet rather than trusting a marketing claim.

Specification checklist

Before ordering, confirm each line so the cable survives the environment:
