product attribute
| Customization: | OEM/ODM |

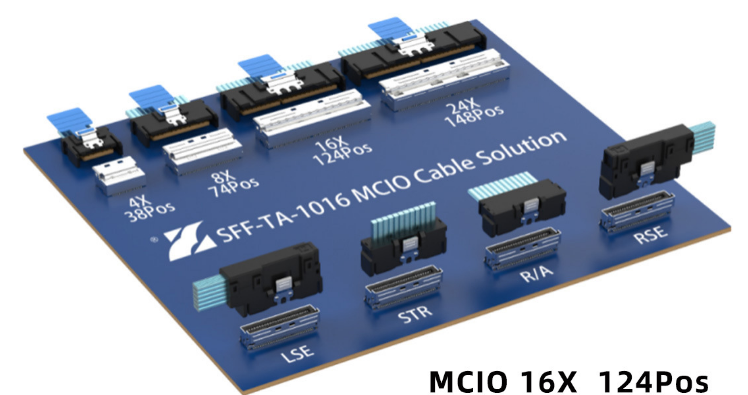

| Interface standard： | Compliant with the SFF-TA-1016 standard |
| length： | 0.5M 0.8M 1M |
| Function： | Ultra-high transmission stability and accuracy |
| Main purpose： | Servers and data centers, storage systems, high-performance computing and edge computing |
| Compatible： | Supports backward compatibility with PCIe 4.0 and PCIe 3.0 |
| Electrical characteristics: | a)Supports the PCIe 5.0 protocol |
| b) Single-channel data rate: 32 GT/s | |
| c) Differential impedance 80Ω±10% | |
| d) Rated operating voltage: 12V / 5V | |
| e) Insulation voltage between conductors: ≥100VAC（Last for one minute） | |
| application: | High-speed cable direct connection for extending PCIe devices |
| Environmental standards: | RoHS Compliant |
application area

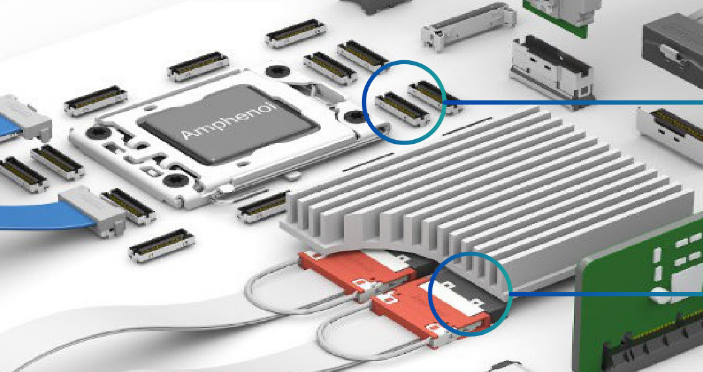

♦ Server and Data Center: Used for high-speed connections between the motherboard and PCIe expansion cards (such as GPUs, NVMe SSD backplanes), PCIe adapter cards, or between the CPU and CXL memory expansion modules.
♦ · Server and Data Center: Used for high-speed connections between the motherboard and PCIe expansion cards (such as GPUs, NVMe SSD backplanes), PCIe adapter cards, or between the CPU and CXL memory expansion modules.
♦ Storage system: Connects storage controllers, JBOD (disk clusters), and RAID (Redundant Array of Independent Disks) systems.
♦ High-performance computing and edge computing: Suitable for AI servers, GPU clusters, and devices such as telecommunications routers and switches that require high-speed internal interconnection.
Why Choose our Lungkay
LUNGKAY Electronics - Your exclusive expert for cable manufacturing design
- Reliable Quality: Expert design using phosphor bronze terminals and durable PBT housing ensures long-lasting performance.
- Strict Testing: Every assembly undergoes comprehensive testing to guarantee signal integrity and electrical performance.
- Full Customization: We offer complete OEM/ODM services for unique cable lengths, pinouts, and connector requirements.
