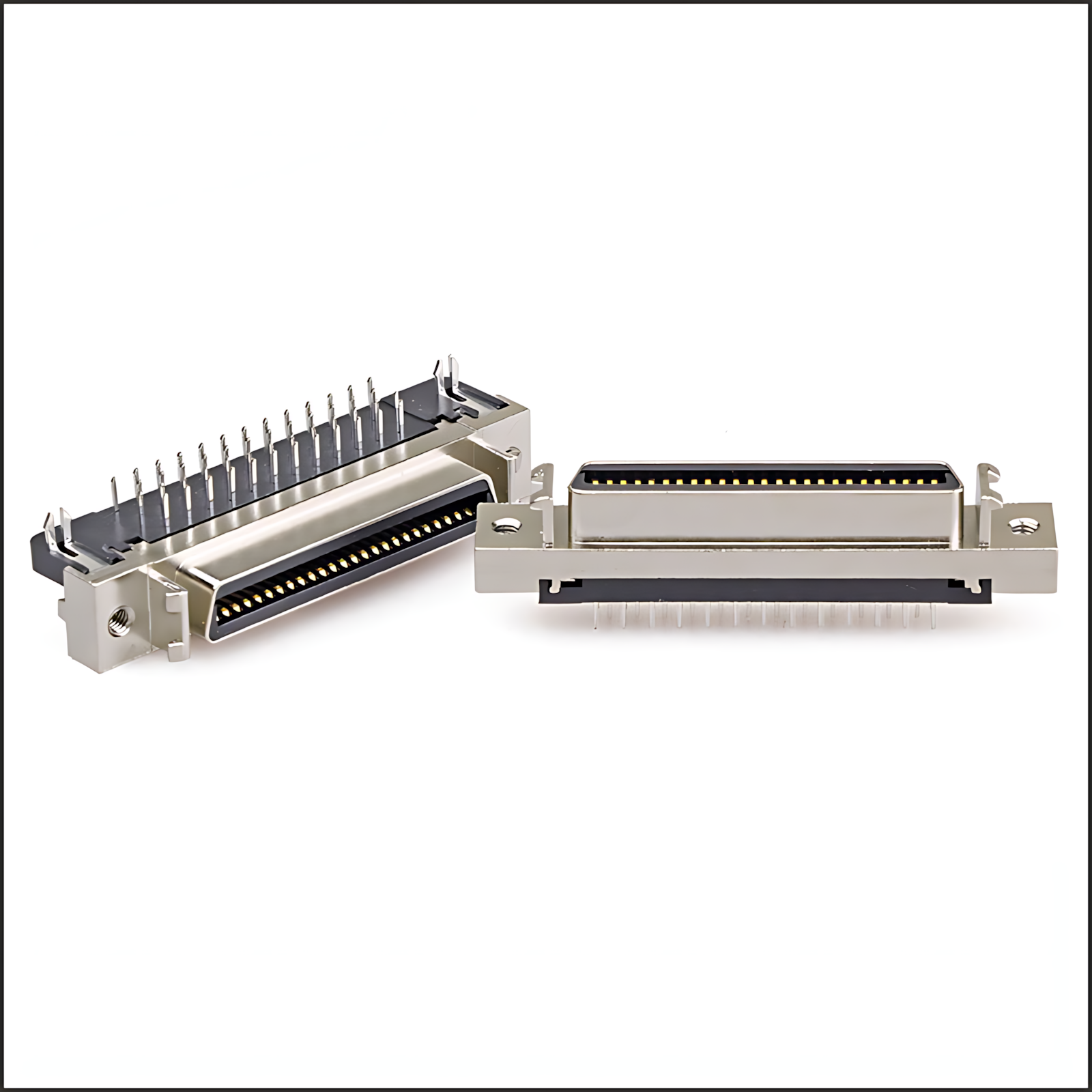

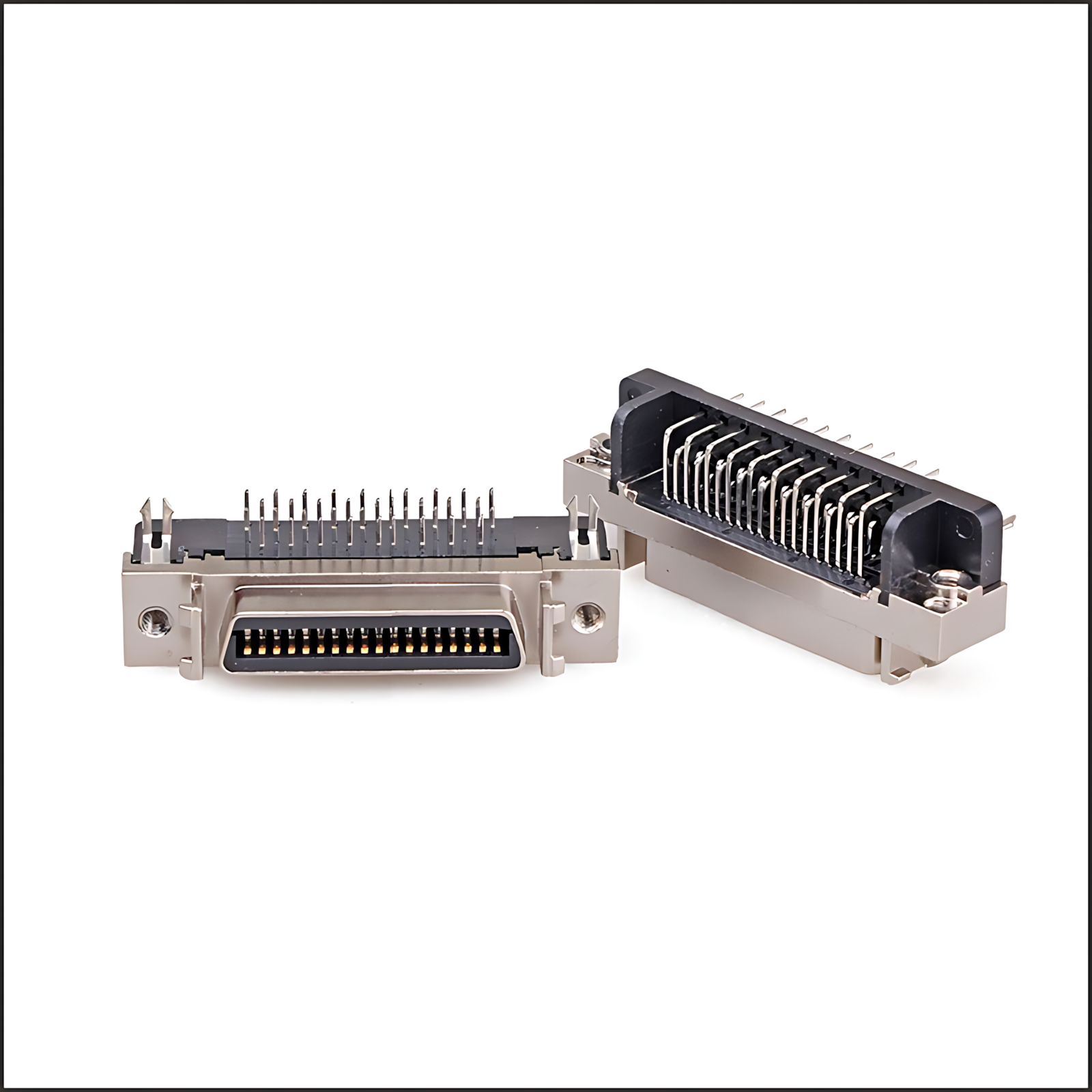

SCSI Motherboard/MCR Slot Type: SCSI Motherboard with 180-degree straight insertion, 14, 20, 26, 36, 50, 68, 100P

termina：	Copper alloy,Contact area plated Au
Main body iron shell：	Zinc alloy,Plated Ni
housing:	PBT+30%G.F.,Black
cover:	PBT+30%G.F.,Black
Shell color：	NA
Electrical characteristics:	a) Contact Currect Rating: 1 Amp
	b) Dielectric Withstanding Voltage:1000V AC
	c) Insulation Resistance: 5000MΩ/Min
	d) Contact Resistance: 35Ω/Max
	e) Operaion Temperature: -55℃～+125℃
application:	Industrial equipment,Servo peripheral,High speed printer
Environmental standards:	RoHS Compliant
