Mini SAS SFF-8643 to 4-port SATA High-Speed Data Cable

· Efficient expansion: Four SATA hard drives can be connected through a single cable, effectively increasing the storage density of the server and saving the motherboard interface and internal space of the case.
· High bandwidth and stability: Adopting a 4-channel transmission design. For example, SilverStone’s cables support the SAS 3.0 standard, with each channel capable of reaching a rate of 12 Gbps, while general cables also support a transmission rate of 6 Gbps, enabling the full performance of SATA solid-state drives or mechanical hard drives.
· Reliable connection: The SFF-8643 connector design is sturdy and features a locking mechanism, ensuring stable connection even in a vibrating environment and preventing detachment. The cables usually adopt a shielded design to reduce signal interference.
· Wide compatibility: Compatible with RAID cards and HBA cards that support the SAS protocol (such as a series of controllers from LSI), and due to the compatibility of SAS interfaces, it can seamlessly connect SATA hard drives.





Get a quote
PDF Drawing download
Categories: , , ,
SHARE

product attribute

Interface Port A：Miini SAS SFF-8643(36Pin Straightforwardly)
Interface Port B：4 X SATA 7Pin
length：0.5M  0.8M 1M
Support Agreement：SAS complies with the SATA protocol
Main purpose：Categories: Internal Cable, Communication cable, MiniSAS Cable, MiniSAS-HD Cable
Interface material：Gold-plated stitches, resistant to wear and oxidation
Electrical characteristics:a) Data speed: 6 Gbps
b) Working voltage +5  V  DC
c)Signal voltage: Differential signal voltage 350 mV – 700 mV
d)Characteristic impedance 100Ω±10%(Differential impedance）
e) Use high-frequency copper as the conductor
application: The Mini SAS SFF-8643 to 4-port 90-degree elbow SATA data cable is an internal connection solution specifically designed for server, storage and compact workstation environments with limited space.
Environmental standards:RoHS Compliant

application area

♦ Enterprise-level server storage expansion: This is used to connect the motherboard or RAID/HBA card to multiple SATA hard drives in a rack-mounted server, thereby expanding the data storage capacity.

♦ Data centers and cloud storage: In storage servers and disk array cabinets that require high-density deployment and centralized management, they are used to build large-capacity storage solutions.

♦ Professional Workstation and NAS: Suitable for professional audio and video editing workstations that require high performance and multiple hard drive redundancy, or enterprise-level network-attached storage (NAS) devices.

♦ Data recovery and backup system: It is highly practical in scenarios where multiple hard drives need to be connected simultaneously for data migration, backup, or restoration operations.

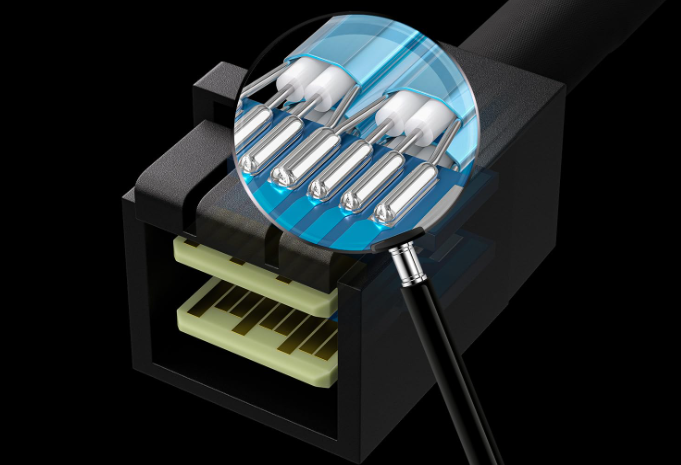

Mini SAS SFF-8643 to 4-port 90-degree angled SATA data cable

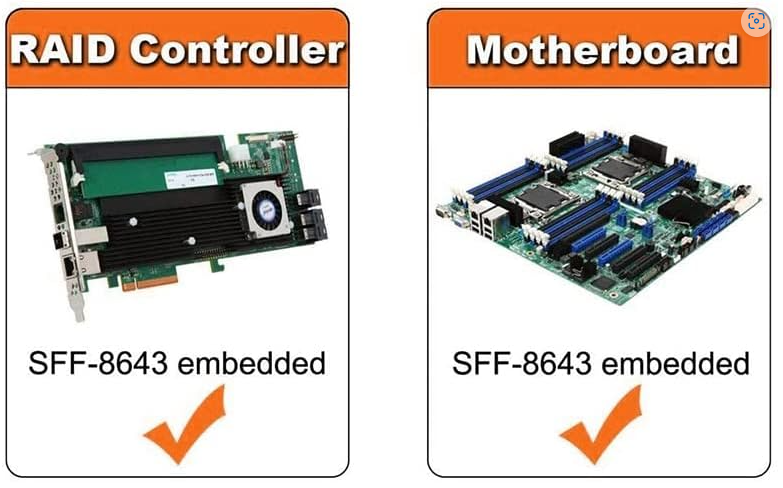

Mini SAS SFF-8643 to 4-port 90-degree angled SATA data cable
