product attribute
| Interface Port A： | SFF-8087 (Mini SAS Internal)， 36-pin |
| Interface Port B： | SFF-8087 (Mini SAS Internal)， 36-pin |
| length： | 0.5M 0.8M 1M 2M |
| Support Agreement： | SAS 3.0 (12Gbps) Downward compatibility with SAS 2.0 (6Gbps) / 1.0 (3Gbps) |
| Main purpose： | Provide a stable and reliable single-channel signal transmission solution |
| Interface material： | Gold-plated stitches, resistant to wear and oxidation |
| Electrical characteristics: | a) Data speed: 12 Gbps |
| b) Rated voltage：30 V AC/DC | |
| c)Insulation resistance: 100 M Ω | |
| d)Characteristic impedance 100Ω±10% | |
| e) Use high-frequency copper as the conductor | |

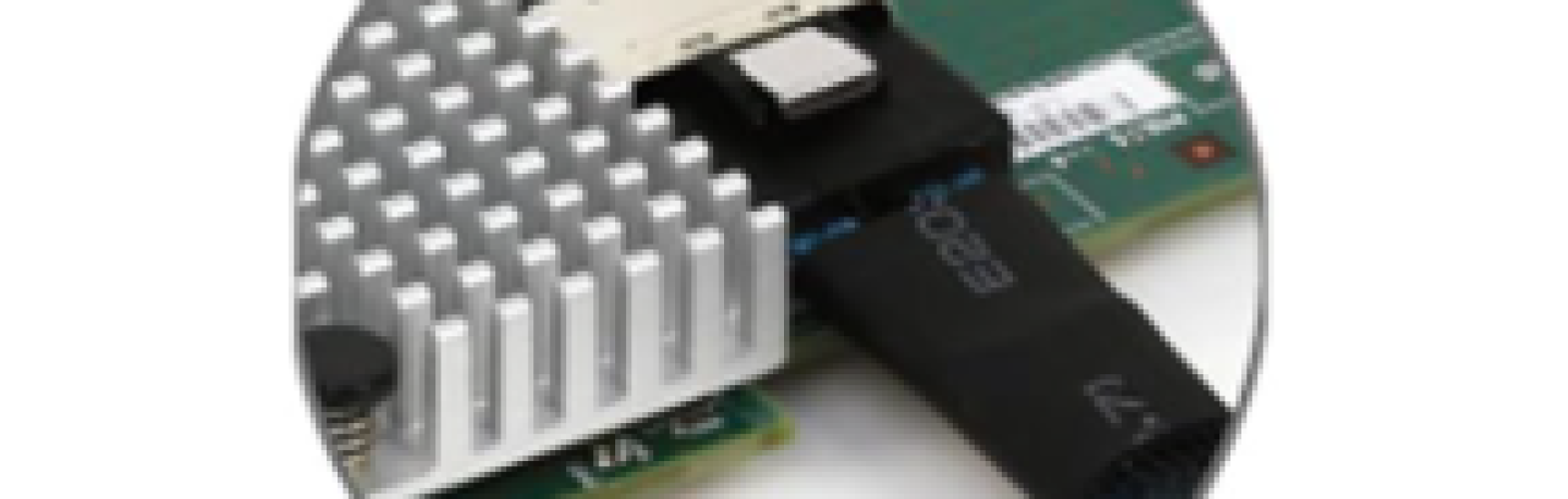

| application: | Backplane to HBA card connection, high-density server internal wiring, multi-disk cage cascading |
| Environmental standards: | RoHS Compliant |
application area

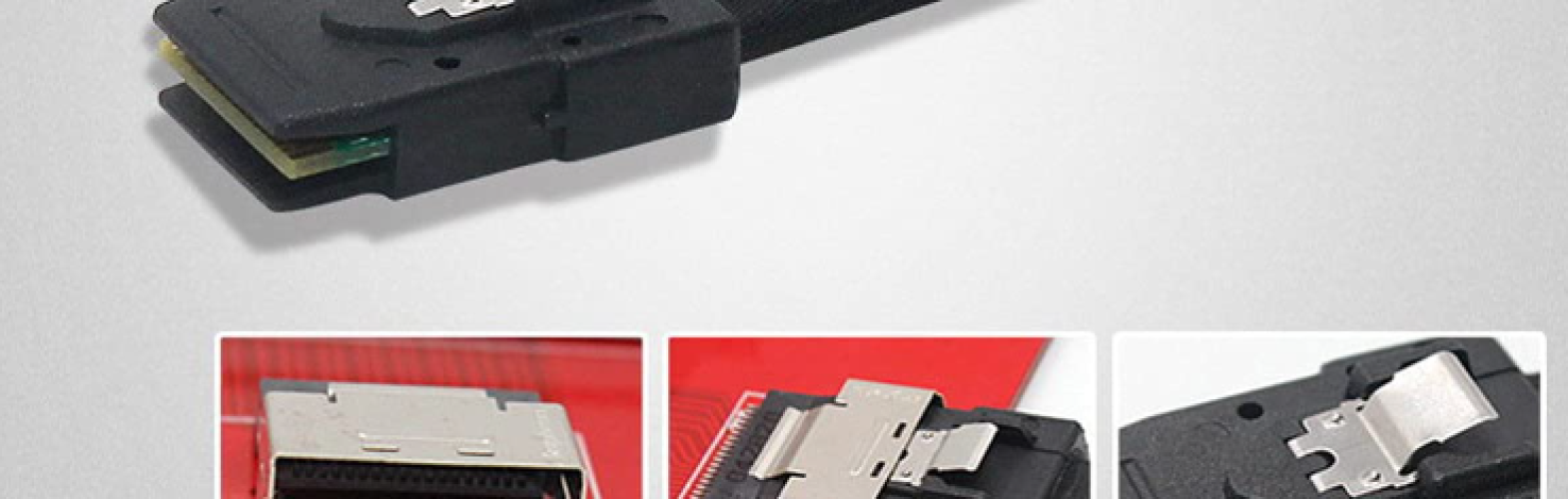

♦ Professional-level space optimization solution: The exclusive left-angle connector design is the core competitiveness of this product. It directly leads the cables to the side, completely eliminating the “arching” problem of traditional straight connectors in narrow spaces, freeing up valuable space for CPU coolers, memory modules, or chassis fans, and is an essential tool for achieving high-density deployment and optimizing cooling.

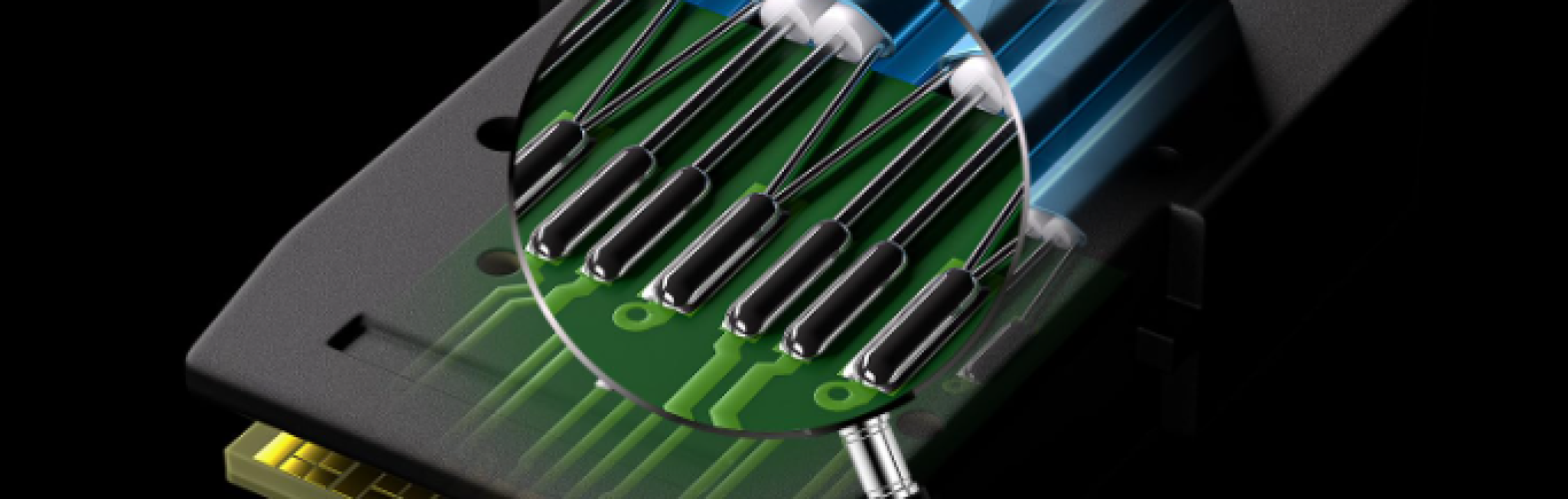

♦ Outstanding high-density connection stability: SFF-8087 is a 4-channel high-density internal interface standard that has been verified by the market for a long time. The product uses a full-metal shielding shell and gold-plated contacts to ensure continuous and stable high-speed signal transmission in multi-device and high-interference server environments, with a secure and reliable connection.
♦ Enhancing system reliability and maintainability:
· Protecting connectors and cables: The bend design significantly reduces the stress on the cables at the connector, effectively preventing damage to the wire cores or poor contact due to excessive bending, and prolonging the service life.
· Improving airflow and cooling: The smooth wiring makes the internal airflow channels in the chassis more smooth, helping to lower the overall operating temperature of the equipment and directly improving the stability of the system over the long term.
· Facilitating maintenance and inspection: The neat and orderly cable layout makes the internal structure of the equipment clear, significantly simplifying subsequent hardware replacement, fault detection, and maintenance work.
Why Choose our Lungkay
LUNGKAY Electronics - Your exclusive expert for cable manufacturing design
- Reliable Quality: Expert design using phosphor bronze terminals and durable PBT housing ensures long-lasting performance.
- Strict Testing: Every assembly undergoes comprehensive testing to guarantee signal integrity and electrical performance.
- Full Customization: We offer complete OEM/ODM services for unique cable lengths, pinouts, and connector requirements.
