product attribute

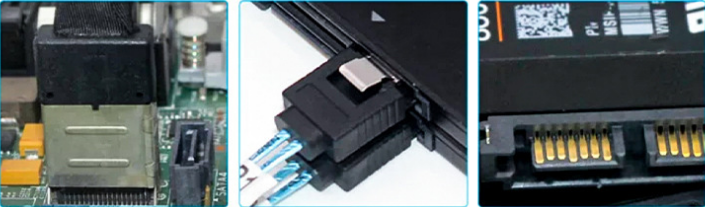

| Host end interface: | Mini SAS SFF-8087(36Pin Male) |

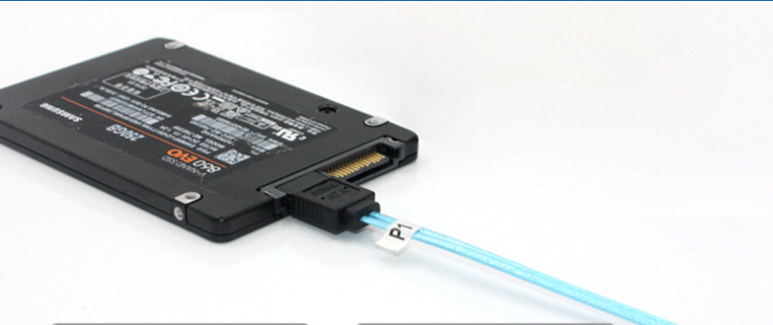

| Device-end interface： | 4X Standard SATA(7Pin Female) |
| length： | 0.5M 0.8M 1M |
| Support Agreement： | SATA 3.0(6Gbps),Downward compatibility SATA 2.0/1.0 |
| Main purpose： | Port expansion, signal conversion |
| Interface material： | Gold-plated stitches, resistant to wear and oxidation |
| Electrical characteristics: | a)The signal rate supports 1.5 Gbps, 3.0 Gbps and 6.0 Gbps |
| b) Signal line voltage: 3.3V ±5% | |
| c) Characteristic impedance: The impedance of the differential signal line is strictly controlled at 100Ω ± 10%, matching the impedance of SAS/SATA standard equipment | |
| d) Insulation resistance≥100MΩ | |
| e) Withstanding voltage of 500V AC, for a duration of 1 minute | |
| application: | Perfectly applicable to scenarios such as server expansion, NAS setup, and data recovery. |
| Environmental standards: | RoHS Compliant |
application area

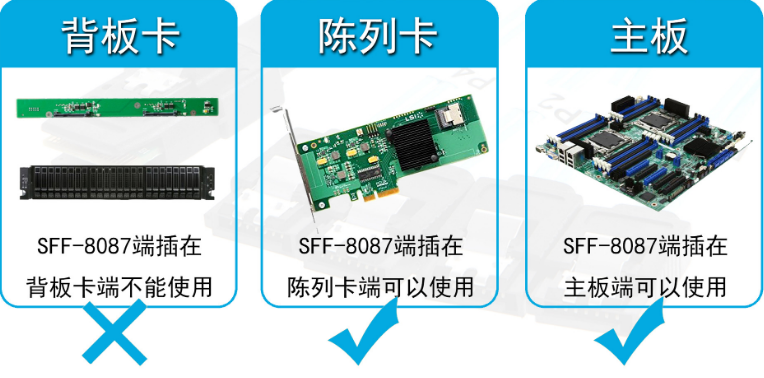

♦ Server hard drive expansion: To expand the connection of multiple SATA hard drives for servers equipped with SFF-8088 interface RAID cards or HBA cards, to build a high-capacity and low-cost data storage solution.
♦ Workstation storage upgrade: Expand multiple SATA SSDs or HDDs for high-performance workstations to meet the high-speed and large-capacity storage requirements of tasks such as video editing and 3D rendering.
♦ NAS/Network Storage Construction: When building a DIY network storage device, use this cable to connect the SAS ports on the motherboard or expansion card to multiple SATA hard drive backplanes or directly to the hard drives.
♦ Data recovery and migration: The data recovery studio uses hard drive bases with SAS interfaces or PCIe cards, and connects multiple SATA hard drives to be recovered or migrated simultaneously through this cable to enhance efficiency.
♦ Disk array cabinet connection: This is used to connect disk array cabinets with external SAS interfaces to multiple independent SATA devices.
Why Choose our Lungkay
LUNGKAY Electronics - Your exclusive expert for cable manufacturing design
- Reliable Quality: Expert design using phosphor bronze terminals and durable PBT housing ensures long-lasting performance.
- Strict Testing: Every assembly undergoes comprehensive testing to guarantee signal integrity and electrical performance.
- Full Customization: We offer complete OEM/ODM services for unique cable lengths, pinouts, and connector requirements.
