product attribute
| Interface Port A： | Mini SAS HD SFF-8654 |
| Interface Port B： | Mini SAS HD SFF-8654 |
| length： | 0.5M 0.8M 1M |
| Support Agreement： | SAS-3 (12Gbps per lane) Downward compatibility with SAS-2 (6Gbps) and SATA-3 (6Gbps) |
| Main purpose： | Meet the requirements for high-performance computing and big data processing |
| Interface material： | Gold-plated stitches, resistant to wear and oxidation |
| Electrical characteristics: | a) Data speed: 24 Gbps |
| b) Working voltage +5 V DC | |
| c)Signal voltage: Differential signal voltage 350 mV – 700 mV | |
| d)Characteristic impedance 100Ω±10%（Differential impedance, in accordance with SAS-3 standard） | |
| e) Use high-frequency copper as the conductor | |
| application: | Standardized server internal connections of cloud service providers, internet enterprises, and data centers in the financial industry |
| Environmental standards: | RoHS Compliant |
application area

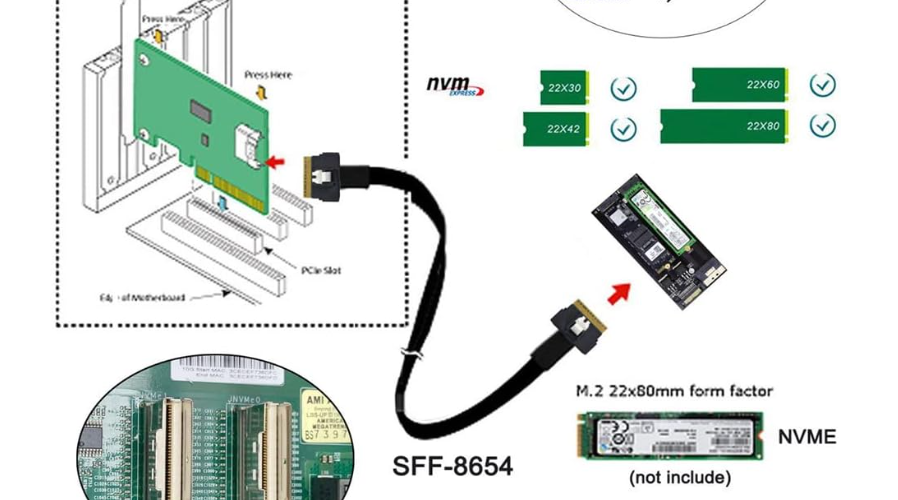

♦ Internal storage expansion of the server: Directly connect the HBA card (such as LSI 9400-8i) to the server’s hard disk backplane, activate all hard drive slots.
♦ Storage array cabinet/JBOD connection: Used to connect the control server to the external disk expansion cabinet to build a large-scale storage pool.
♦ High availability cluster: In server clusters that require shared storage, used to connect server nodes to shared storage devices.
♦ Data migration and backup system: In temporarily set up high-speed data transmission or backup devices, serves as the core data transmission link.
♦ High-performance computing storage network: Provides high-bandwidth and low-latency storage access channels for computing nodes in HPC environments.
Why Choose our Lungkay
LUNGKAY Electronics - Your exclusive expert for cable manufacturing design
- Reliable Quality: Expert design using phosphor bronze terminals and durable PBT housing ensures long-lasting performance.
- Strict Testing: Every assembly undergoes comprehensive testing to guarantee signal integrity and electrical performance.
- Full Customization: We offer complete OEM/ODM services for unique cable lengths, pinouts, and connector requirements.
