In the high-stakes environment of industrial automation, the failure of a single sensor or actuator connection can halt an entire production line. Circular connectors, specifically the M12/M16 cable standards, have become the global benchmark for reliability in harsh conditions. However, as the demand for Industry 4.0 integration grows, procurement officers and engineering teams face a significant challenge: distinguishing between low-cost consumer-grade assemblies and true industrial-grade interconnects. Finding a trusted supplier who understands the nuances of IP ratings, EMI shielding, and mechanical stress is vital for long-term ROI.
At Longkai Electronics (Lungkay Electronic), we have been at the forefront of interconnect technology since 2012. Our expertise in industrial cables allows us to deliver M12 and M16 solutions that meet the stringent requirements of Fortune 500 companies like Samsung, LG, and CATL. By integrating R&D, production, and rigorous testing, we ensure that every cable assembly provides “Quality that leads the future.”
The Core Technology: Material Deep Dive for M-Series Connectors
The durability of an M12/M16 cable is determined long before it reaches the factory floor. It begins with the selection of high-grade raw materials. Industrial circular connectors must resist oils, chemicals, and extreme temperature fluctuations while maintaining high-speed signal integrity.
Key technical considerations in our manufacturing process include:

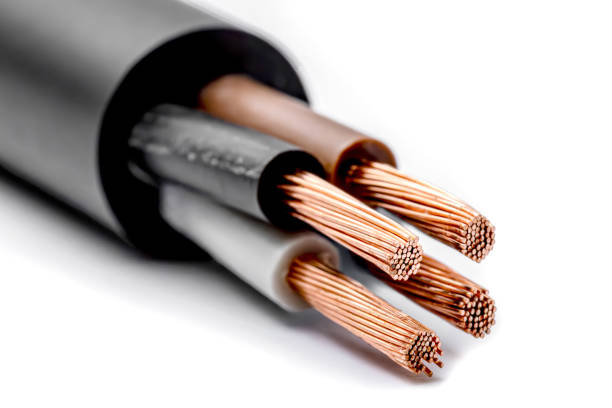

- Conductor Quality: We utilize high-purity Oxygen-Free Copper (OFC) with silver or gold plating to minimize contact resistance and prevent oxidation in humid environments.
- Insulation and Jacket Materials: Depending on the application, we offer TPU (Thermoplastic Polyurethane) for oil resistance and high flexibility, or PVC for cost-effective static applications.
- EMI/RFI Shielding: To prevent signal interference from nearby heavy machinery, our cables feature 360-degree shielding with AL-Mylar foil and high-density tinned copper braiding.
M12 vs. M16 Connector Specification Comparison
| Feature | M12 Connector | M16 Connector |
|---|---|---|
| Thread Diameter | 12mm | 16mm |
| Pin Counts | 3, 4, 5, 8, 12 Pins | 2 to 24 Pins |
| Coding Options | A, B, D, X, L, K-Coded | Standard Circular |
| Max Current | Up to 4A (Standard) / 12A (Power) | Up to 7A – 10A |
| IP Rating | IP67 / IP68 / IP69K | IP40 / IP67 |
| Common Use | Sensors, Fieldbus, Ethernet | Power, Control, Signal Density |
Key Industry Applications (Where & Why)
The versatility of M-series cables makes them indispensable across various high-tech sectors. As a trusted supplier, we customize these assemblies to meet the specific protocols of different industries.
1. Industrial Automation & Robotics
In robotic cells, cables are subjected to multi-axis torsion and constant movement. Our M12 A-coded and D-coded cables are frequently used for sensor-actuator loops and Industrial Ethernet (Profinet/EtherCAT). For power-intensive applications, we also provide servo series connectors and specialized wiring harnesses to ensure smooth motor control.
2. Automotive Electronics & EV Battery Manufacturing
Working with partners like CATL, we understand the critical nature of battery management systems (BMS). M12 cables provide the secure, vibration-resistant locking mechanism required for monitoring temperature and voltage in electric vehicle platforms. Our industrial network cables ensure that data flows without interruption between the BMS and the central control unit.
3. Medical Imaging & Laboratory Equipment
Medical devices require high hygiene standards and zero signal interference. The M16 connector is often chosen for its higher pin density in medical diagnostic equipment where space is limited but signal complexity is high. We also integrate waterproof D-sub connectors in tandem with M-series cables to create comprehensive medical-grade harnesses.
Technical Standards & Certifications
A trusted supplier must demonstrate adherence to international quality benchmarks. Longkai Electronics operates a state-of-the-art facility that maintains the following certifications:
- ISO 9001:2015: Our quality management system covers the entire lifecycle from R&D to final shipping.
- ISO 14001: We are committed to sustainable manufacturing and reduced environmental impact.
- CE & FCC: Our assemblies are tested for electromagnetic compatibility, ensuring they can be exported and used globally without regulatory hurdles.
- IP67/IP68 Testing: We perform rigorous immersion tests to ensure our waterproof connectors and cables maintain their seal under pressure.
B2B Procurement Guide: How to Choose the Right Solution
Choosing the correct M12/M16 cable requires more than just matching the thread size. Engineers should evaluate the following criteria to prevent field failures:
Coding and Pin Configuration
For M12 cables, coding is critical to prevent incorrect mating. A-coded is for sensors/DC power; B-coded for Profibus; D-coded for 100Mb Ethernet; and X-coded for 10Gbps high-speed data. Ensure your supplier can provide the exact coding required for your hardware.
Mechanical Stress and Flex Life
If the cable is used in a drag chain or on a moving robotic arm, specify a “High-Flex” TPU jacket. For stationary sensor mounting, a standard PVC jacket is sufficient and more cost-effective. At Longkai, we offer M-series cables integrated with M23 and other power wires for complex machinery builds.
Locking Mechanism: Screw vs. Push-Pull
Screw-locking (threaded) remains the industry standard for high-vibration environments as it provides the most secure physical connection. Push-pull mechanisms are gaining popularity in medical and cleanroom environments where speed of connection is a priority.
Why Partner with Longkai Electronics? (The Pitch)
Since our establishment in 2012, Longkai Electronics (Lungkay Electronic) has been more than just a component manufacturer—we are a strategic partner in your supply chain. Our philosophy of “Quality leads the future and connects global possibilities” is the foundation of our work with over 100 well-known brands.
Our Core Advantages include:
- Vertical Integration: We control the R&D, production, and testing in-house, ensuring factory-direct prices and unmatched quality control.
- Global Reach: Based in China with a reach covering North America and East Asia, we have the logistics expertise to support global manufacturing operations.
- OEM/ODM Flexibility: We welcome custom requirements. Whether you need a specific cable length, a hybrid M12-to-RJ45 assembly, or a specialized servo motor wiring harness, our engineering team is equipped to deliver.
Ready to secure your connections? Contact Longkai Electronics today for technical samples or a bulk quote on your industrial cabling needs. Discover our full range of Industrial Cables here.
Frequently Asked Questions (FAQ)
What is the difference between A-coded and D-coded M12 cables?
M12 A-coded cables are primarily used for sensors, actuators, and DC power distribution. D-coded cables are specifically designed for Industrial Ethernet applications (4-pin), supporting data rates up to 100Mbps while providing high immunity to electrical noise.
Can an M16 connector handle power and signal simultaneously?
Yes. Due to its larger diameter compared to M12, M16 connectors can accommodate more pins (up to 24), allowing for hybrid configurations where both power and signal are transmitted through a single cable assembly. This is common in complex control systems and medical devices.
Are Longkai’s M-series cables rated for underwater use?
Our M12 and M16 cables can be manufactured to IP68 standards, meaning they are protected against long periods of immersion under pressure. This makes them ideal for outdoor sensors, food processing plants, and marine applications where moisture ingress is a constant threat.
Do you provide customized wiring harnesses using M12/M16 connectors?
Absolutely. As a trusted supplier, we specialize in complete cable assembly services. We can integrate M12/M16 connectors with other interfaces such as D-sub, USB, or RJ45 to create a plug-and-play solution for your specific equipment.
